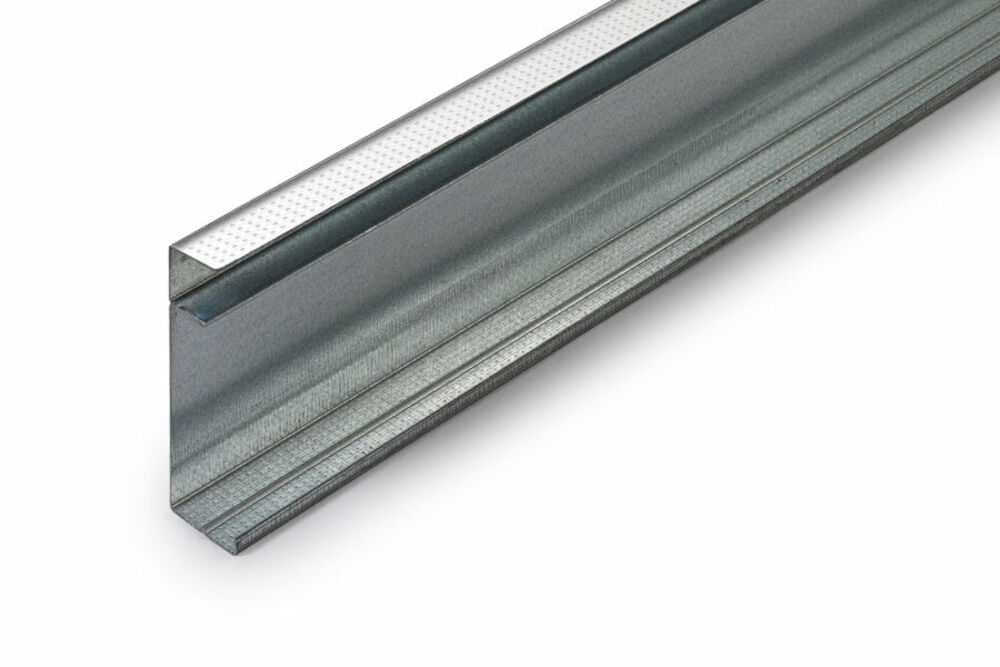

Siniat E Stud
Siniat Shaftwall Starter Studs for 19mm Fire Core board shaftwalls. Steel sections used for starter studs, intersections, door openings and end studs as part of the Siniat Shaftwall Systems.
Further information
Applications:
Used as an integral part of Siniat Shaftwall systems in multi-storey buildings, preventing continuous routes for the spread of fire. Typically installed at 300mm centres, this stud is used in combination with Siniat CH Stud and associated Siniat J and/or U Tracks. Together it allows for full installation of a system from one side of the shaft, completely eliminating the need for scaffolding.
Benefits:
- When built with the Siniat Shaftwall system, pressure changes likely found in deep shafts and voids are resisted
- Used as a starter stud, the E Stud allows for one-sided board installation
- Manufactured to BS EN 14195
- Reaction to fire A1
