Twin(AB)-CS50R-215dB-100G(250)

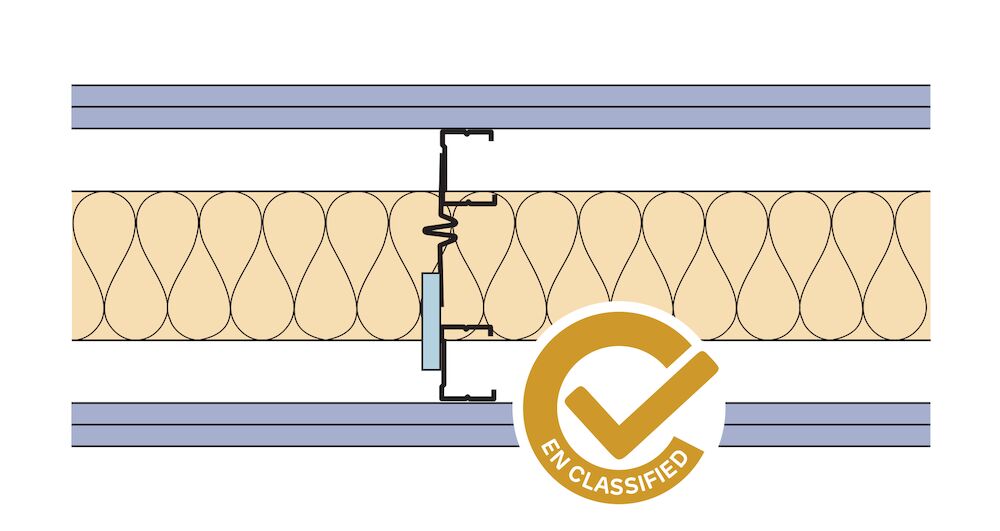

2 x 15mm Siniat dB Boards, Twin Siniat CS50/Rx C-Studs at 600mm centres with Extended Acoustic Brace, 100mm glass mineral wool, 2 x 15mm Siniat dB Boards
Further Information
System name:
Twin(AB)-CS50R-215dB-100G(250)
Acoustic insulation (Rw dB):
65 dB
Nominal thickness:
250 mm
Cold state max. height:
6.7 m
System weight:
55 kg/m²
EN Fire State Max Height:
6 m
Fire resistance (EN 1364-1):
90 min
(Rw+Ctr):
59 dB
Duty rating:
Severe
