CH14B-19FC#212F-25G

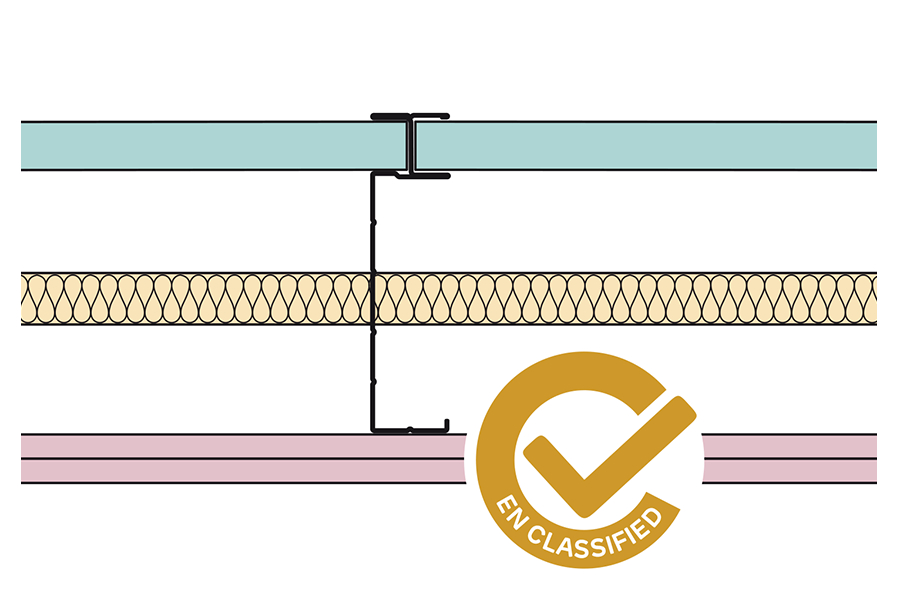

1 x 19 mm Siniat Fire Core Board, Siniat CHS146/B CH-Studs at 600mm centres, 25mm glass mineral wool, 2 x 12.5 mm Siniat Fire Board
Further Information
System name:
CH14B-19FC#212F-25G
Nominal thickness:
171 mm
Cold state max. height:
6.7 m
System weight:
42 kg/m²
EN Fire State Max Height:
4 m
Fire resistance (EN 1364-1):
60 min
Acoustic insulation (Rw dB):
49 dB
Duty rating:
Severe
