CH90B-19FC#315F-25G

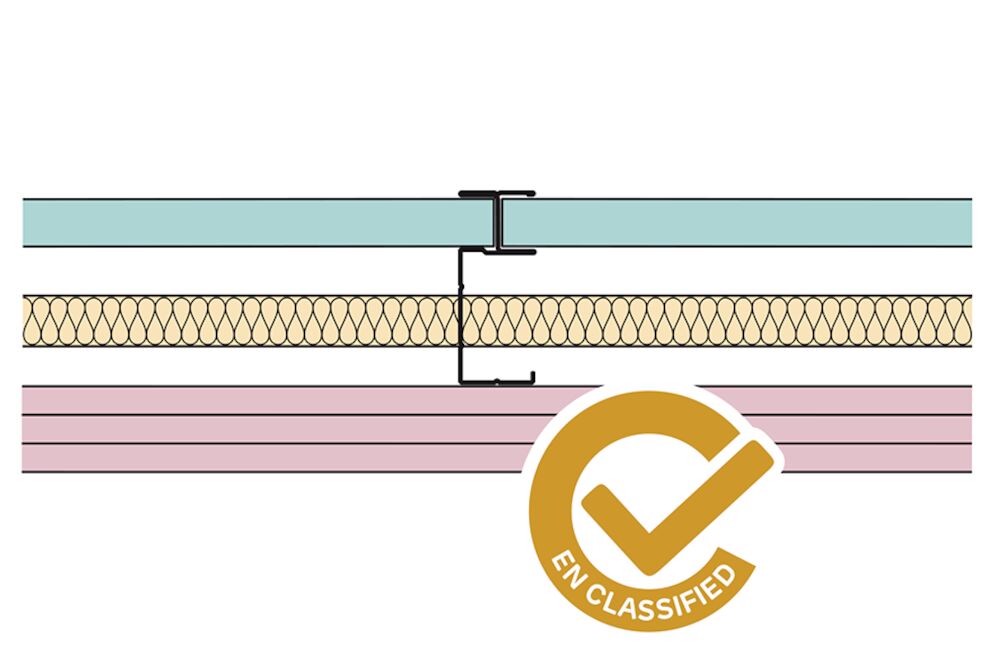

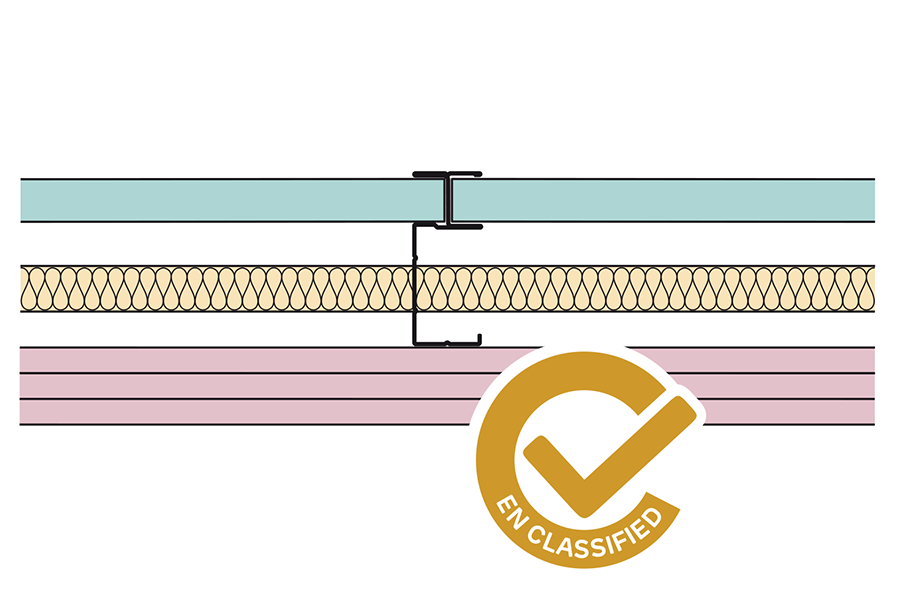

1 x 19 mm Siniat Fire Core Board, Siniat CHS90/B CH-Studs at 600mm centres, 25mm glass mineral wool, 3 x 15 mm Siniat Fire Board
Further Information
System name:
CH90B-19FC#315F-25G
Nominal thickness:
135 mm
Cold state max. height:
5.3 m
System weight:
57 kg/m²
EN Fire State Max Height:
4.8 m
Fire resistance (EN 1364-1):
120 min
Acoustic insulation (Rw dB):
51 dB
Duty rating:
Severe
