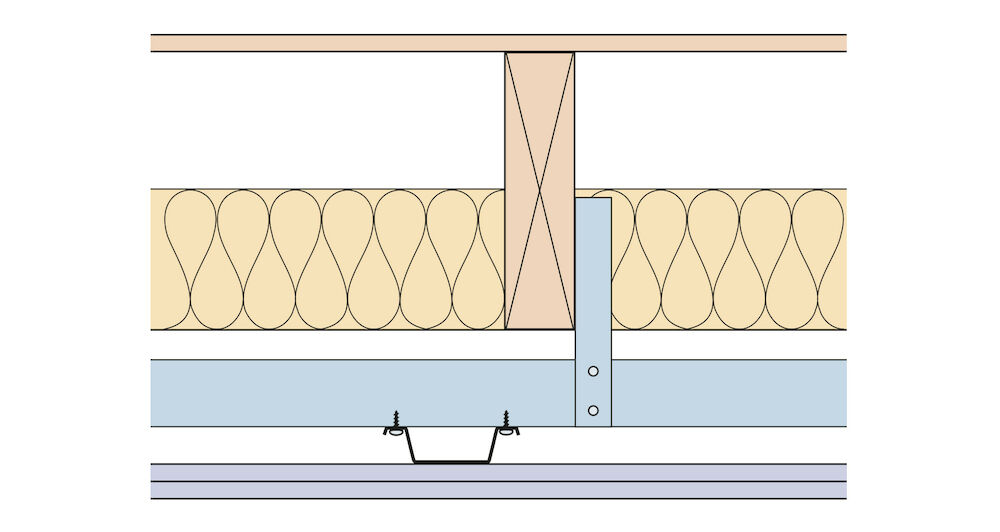

Suspended MF System RCC 012

1x 12.5mm Siniat E Board, 1x 12.5mm Siniat E Board, Siniat Ceiling Channels at max. 450mm centres, Siniat Frame should be screw fixed, 100mm 10.5kg/m3 glass mineral wool,47mm x 200mm Joists at 600mm centres, Min. 18mm tongue and grooved boarding or similar

Further Information

System weight: 42 kg/m²
Acoustic insulation (Rw dB): 46 dB

Applications:

  • Siniat Suspended MF Ceilings are used for commercial applications where services are required below the soffit.* For ceilings with enhanced fire and acoustic performance in commercial and residential applications.

Benefits:

  • Variable void depth size for service and insulation requirements
  • Combine with fire or sound rated boards or insulation for improved performance
  • Simple framework makes it easy to build and renovate
  • Creates a continuous flat ceiling surface for ease of decoration and improved aesthetics
